DPP 30 E

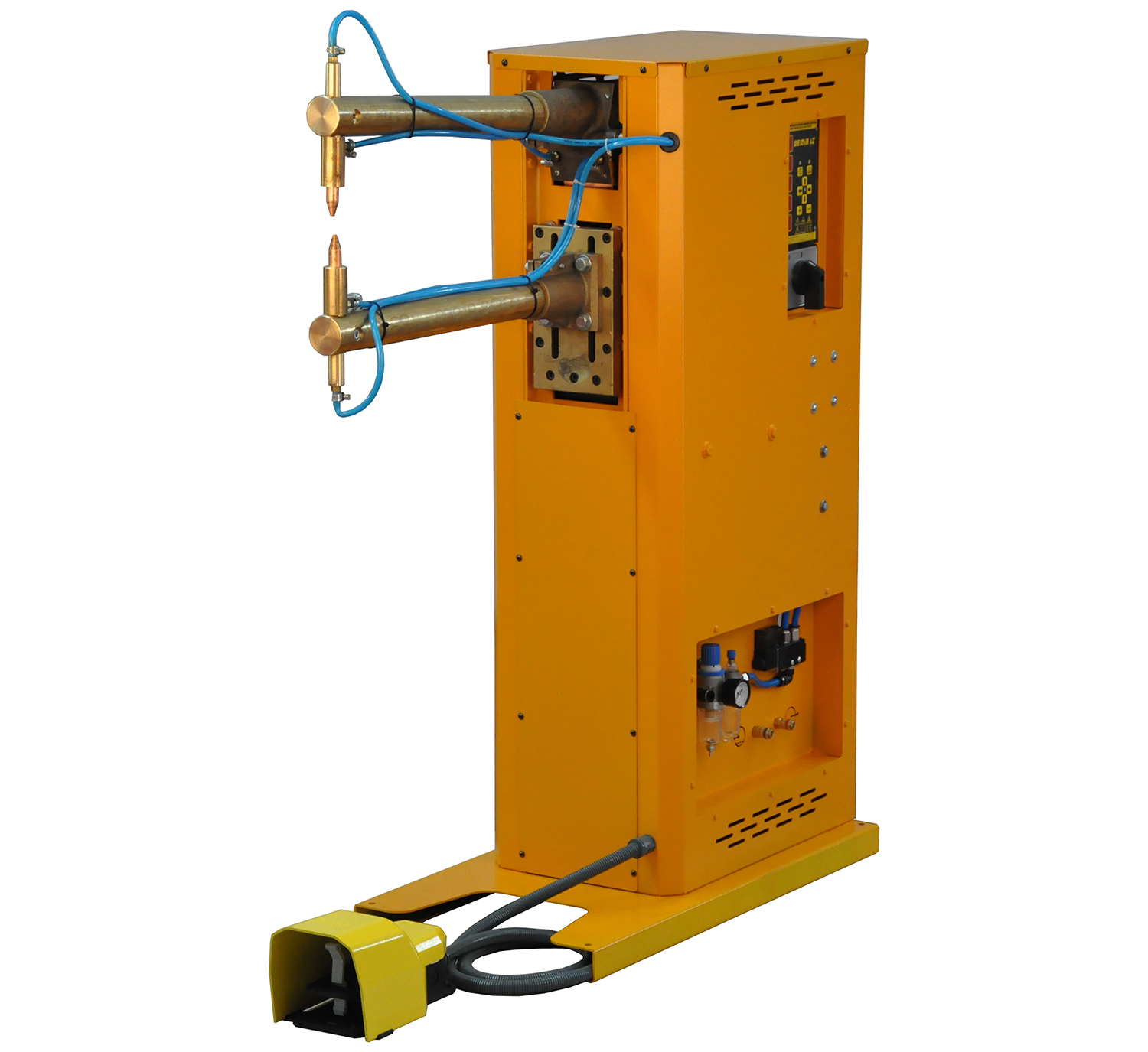

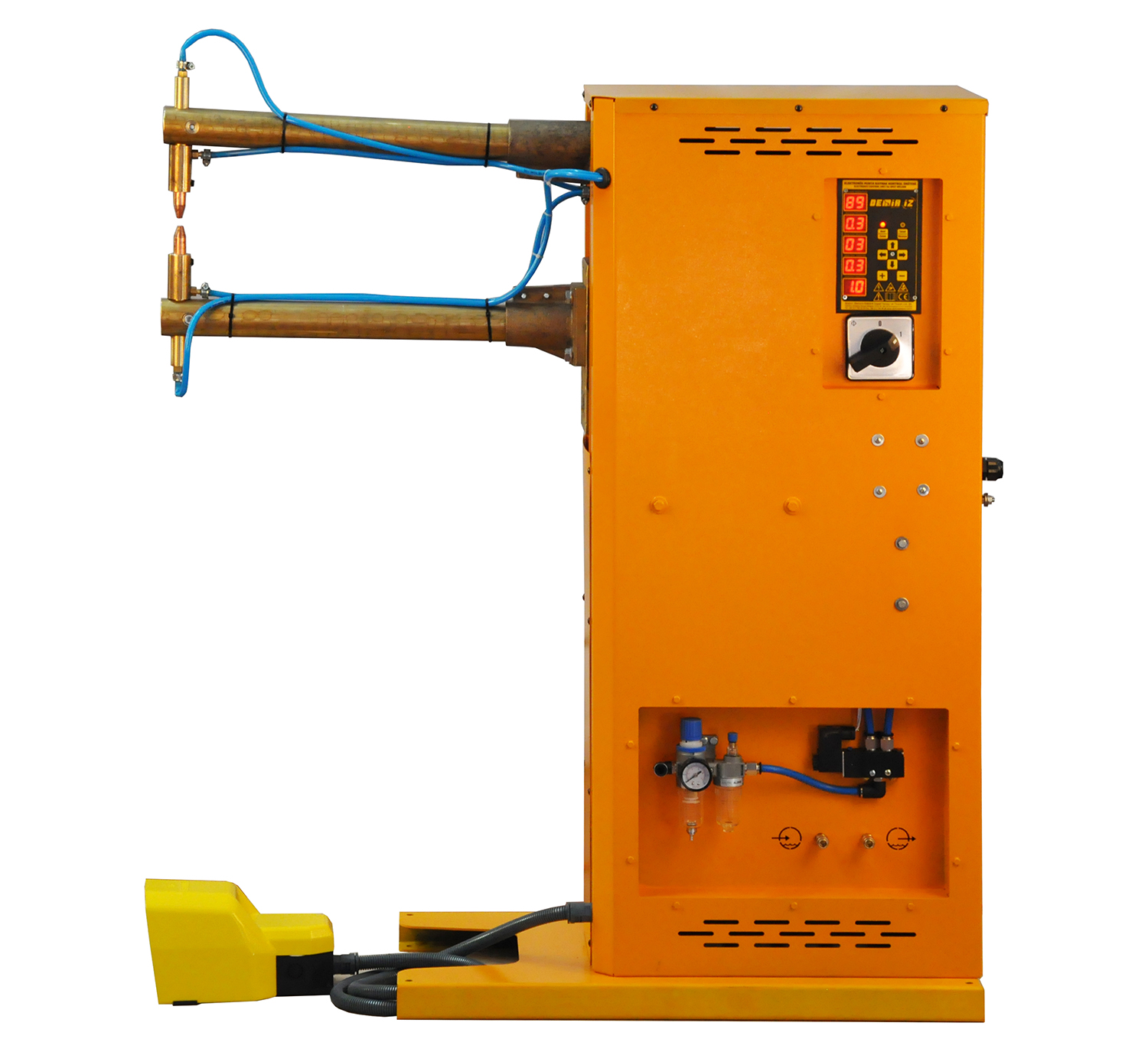

Pneumatic Electronic Spot Welding Machine
A sturdy, powerful, easy-to-use professional spot welding machine with pneumatic actuation and electronic time and current control, giving excellent results when welding ferrous materials and manufacturing steel goods.
Key specifications
- Input Voltage U₁
- 2~ 380 V
- Maximum Primary Current
- 60 A
- Protection Fuse
- 2x63 A (D)
- Maximum Input Power Primax
- 30 kVA
Quote by phone: +90 212 734 39 25
Areas of Use
- Medium and large-sized workshops
- Maintenance and repair workshops
- Sheet-metal panel and stove pipe manufacturing
- Ventilation industry
- Production of galvanised, stainless and steel goods
- Steel construction
- General production lines
Product Features
- Pneumatic system for series production
- Reliable operation with a sturdy metal body
- High transformer power
- Coil former made of heat-resistant Nylon 6 (70 %) and glass fibre (30 %)
- Electronic current and time control
- Electrode tips designed for water cooling
- Strong base made of durable cast iron
Technical Data
| Input Voltage U₁ | 2~ 380 V |
|---|---|
| Maximum Primary Current | 60 A |
| Protection Fuse | 2x63 A (D) |
| Maximum Input Power Primax | 30 kVA |
| Steel Welding Thickness (mm) | 4.00 + 4.00 |
| Galvanised Steel Welding Thickness (mm) | 1.50 + 1.50 |
| Arm Thickness (mm) | 50 |
| Working Depth | 50 cm |
| Steps | 0-99 Electronic |
| Cooling | Water channels provided |
| Protection Class | IP 21 |
| Dimensions (w/l/h) (mm) | 400 x 1200 x 1200 |
| Weight | 162 kg |
