DEMİRİZ - MIG 180 - MIG/MAG Gas Shielded Welding Machine

Click image to zoom. Click here to open in a new window.

Accessories

3 meters Torch
Electrode holder and cable
Earth Cable

User Manual

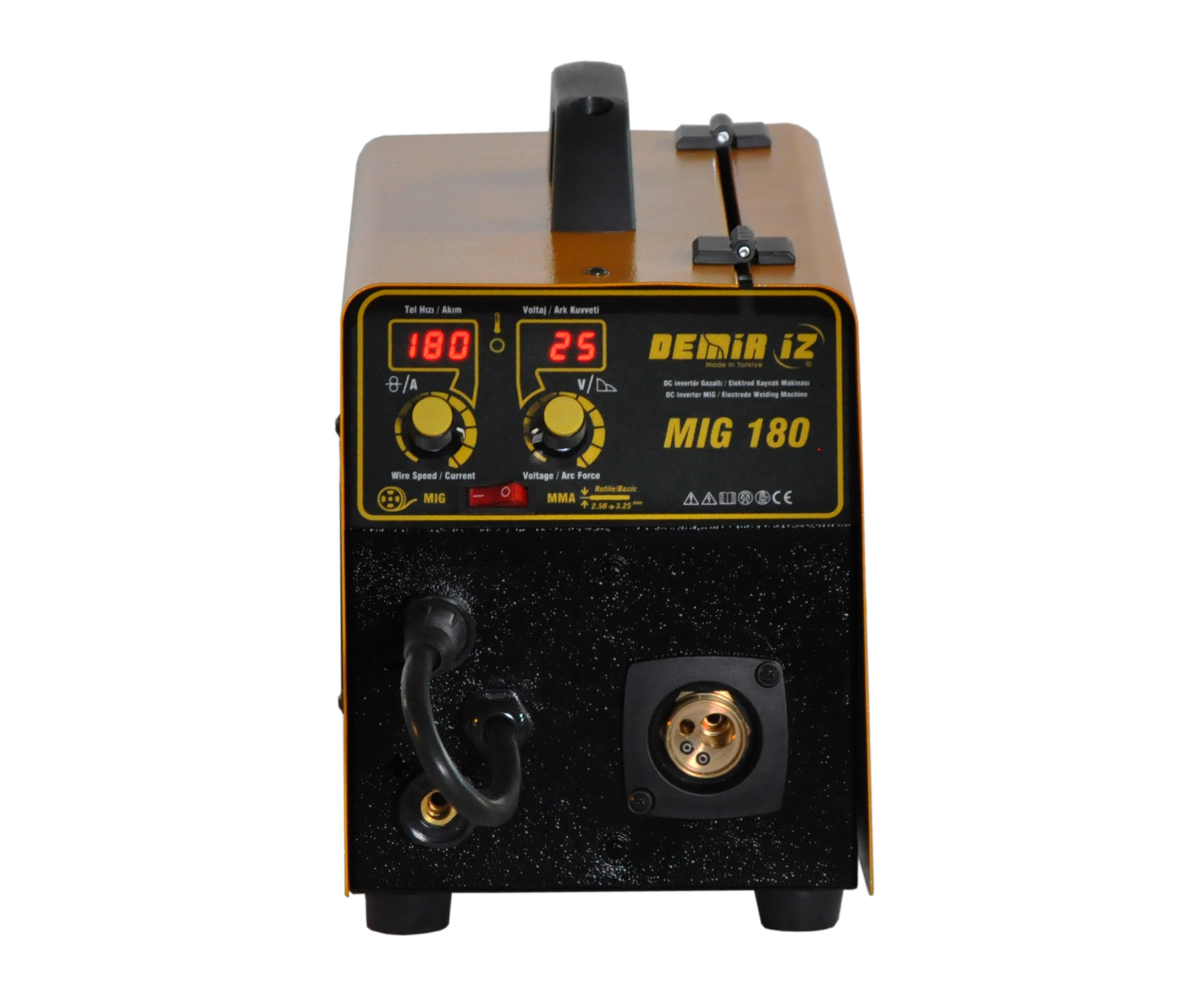

MIG 180 is a portable compact multi-functional welding machine providing up to 180 amps in MIG, ARC and LIFT TIG functions. The machine can be transported in the working environment with its 6kg weight without 5kg wire.

PRODUCT FEATURES

Provides better results on thin metal sheets
Ideal for car body repair workshops and hobby activities
Capability to work with 5 kgs wire spool
Stepless voltage and wire speed adjustment

TECHNICAL PROPERTIES

Supply Voltage U1		1 Phase, 220 V 50 Hz.
Required Supply Fuse		C Type 25 A
Open Circuit Voltage U2		14 V - 25 V
Maximum Input Power		7 kVA
Power Factor cosØ		0,8
Wire Diameter		0,80
Welding Current	% 10	180 A
I2	% 60	80 A
Cooling		Fan
Protection Class		IP 21
Dimensions (w/l/h) (cm)		20 x 52 x 31
Weight		6 kgs
